Description
Unlike slipper systems, this Double-Eye Suspension Kit uses shackle links to connect the springs to the equalizer. This design offers excellent flexibility and articulation, making it a preferred choice for utility trailers, car haulers, and livestock carriers that require a balanced ride across uneven surfaces.
Key Features
-
Optimized Articulation: The double-eye design, combined with the pivoting center equalizer, ensures that both axles maintain consistent contact with the road, reducing tire wear and frame stress.
-
Heavy-Duty Construction: All hangers are fabricated from high-grade, weldable steel, ensuring a permanent and secure bond to the trailer chassis.
-
Precision-Cast Equalizers: The kit includes two robust center equalizers equipped with nylon or bronze bushings for quiet operation and reduced friction.
-
Complete Hardware Suite: Comes fully loaded with shackle straps, wet/dry bolts, and flange locknuts, providing a “one-stop” installation experience.
Technical Specifications
-
Compatibility: Designed for tandem axle configurations using 1-3/4″ wide double-eye leaf springs.
-
Axle Capacity: Typically suited for 2,000 lb to 7,000 lb axle ratings (depending on specific bolt sizing).
-

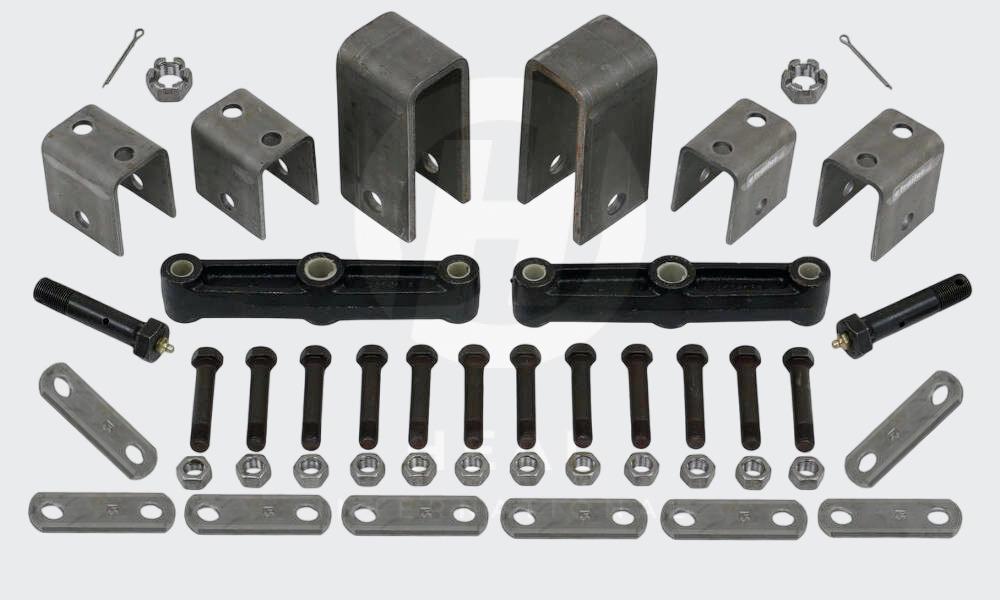

Component List:
-
2x Center Equalizers (Pivoting bar style)
-
2x Center Hangers (Weld-on)
-
4x Outer Hangers (Front and Rear)
-
8x Shackle Straps (Links)
-
14x Suspension Bolts (including 2 greaseable wet bolts for the equalizer)
-
14x Flange Locknuts
-
-
Material: Raw industrial steel (weld-ready).
Applications
Ideally suited for manufacturers and DIY trailer builders working on:
-
Utility & Landscaping Trailers: For smooth transport of mowers and equipment.
-
Car Haulers: Providing the stability needed for long-distance vehicle transport.
-
Enclosed Cargo Trailers: Protecting sensitive cargo through superior shock absorption.
